FPD Tester Signal Module Model A291800-03

FPDTesterSignalModule

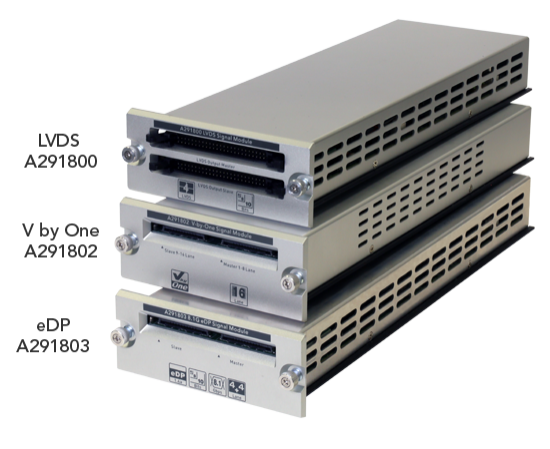

Key Features
  • Modular interface design for various panel test application

  LVDS Signal Module Model A291800

A291800 LVDS Signal ModuleA291800 LVDS Signal ModuleA291800 LVDS Signal Module

Key Features:

  • Color bit supports 6, 8, 10 bits
  • LVDS Pixel Rate:
    • Single (1 link) 150 MHz
    • Dual (2 link) 300 MHz
    • Quad (4 link) 600 MHz
  • Data mapping
    • Dual (2 link): Dot Division, L/R Division
    • Quad (4 link): Dot Division, L/R Division
  • Repeat mode
    • Compliant with EIA-644 standard for LVDS verification
    • Applicable for large size TV and LCM related industries for R&D, QA and production testing.

Introduction:

The A291800 is an LVDS signal module that can be used with FPD Tester to provide LVDS panel standard signals and related controls for LVDS inspection.

  16-Lane V-by-One Signal Module Model A291802

A291800 LVDS Signal ModuleA291800 LVDS Signal ModuleA291800 LVDS Signal Module

Key Features:

  • Compliant with V by one HS V1.4 standard
  • Able to set 6, 8, 10 bits
  • Resolution support to 4096x2160@120Hz
  • Up to 64 lanes supported with multiple modules available for different host
  • Lane rate: 3.75Gbps
  • Lane count: 4, 8, 16 Lane (with 1 module)
  • Support Spread Spectrum Clocking

Introduction:

The A291802 is a 16-lane V-by-One signal module that is used with the FPD Tester to test V-by-One panels by providing standard signals and relates controls.

  8.1G eDP Signal Module Model A291803

8.1G eDP Signal Module Model A2918038.1G eDP Signal Module Model A2918038.1G eDP Signal Module Model A291803

Key Features:

  • Signals are compliant with the eDP 1.4a standard
  • Support 1, 2, 4, 8 lane eDP output
  • Support v1.4 with 8 Lane rates defined (1.62Gbps, 2.16Gbps, 2.43Gbps, 2.7Gbps, 3.24Gbps, 4.32Gbps, 5.4Gbps, 8.1Gbps)
  • Support manual/auto training mode.
  • Support pre-emphasis setting (0dB, 3.5dB, 6dB, 9.5dB)
  • Support swing level setting (200mv, 250mV, 300mV, 350mV, 400mV, 450mV, 600mV, 800mV, 1000mV)
  • Able to 6, 8, 10 Bits
  • VDD provides over voltage/current protection function
  • Support 2 sets of independent AUX and HPD channels
  • Output is designed to equip with ESD protection
  • Support MSO / PSR2  *Option

Introduction:

The A291803 is an 8.1G eDP signal module that is used with the FPD Tester to test eDP panels by providing eDP standard signals and relates controls.
