Inline Printing Quality Automated Optical Inspection System Model 7505-K009

InlinePrintingQualityAutomatedOpticalInspectionSystem
Key Features
  • Applies to Roll to Roll processing and on-line quality control.
  • Equipped with high-resolution camera for 2D defect detection.
  • Both front and rear sides can be inspected at the same time.
  • Defect Test Item: Exposed substrate, fisheye, wrinkles, spacers, spacer separation, spacing length, misalignment, and unevenness on both sides, etc.
  • High throughput

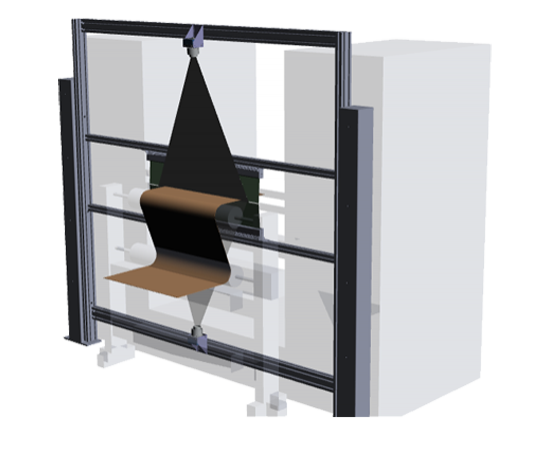

The Chroma 7505-K009 Inline Printing Quality Automated Optical Inspection System equipped with high-resolution camera can perform 2D defect detection that is suitable for Roll to Roll processing and on-line quality control. Both front and rear sides can be inspected at the same time. The defect test items include exposed substrate, fisheye, wrinkles, spacers, spacer separation, spacing length, misalignment, and unevenness on both sides, etc. Besides high throughput, the system also offers storage function to save the data detected for operators to analyze easily.


Product Inquiry

Select the models you wish to get a quote and click the button "Add to Inquiry Cart" below the table.
You may select multiple items at once. Click the inquiry cart icon on the right hand side of webpage to complete your inquiry.

All specifications are subject to change without notice.
Selection
Model
Description

Inline Printing Quality Automated Optical Inspection System
