Bias Current Test System Model 11300

  • CE Mark
BiasCurrentTestSystem
BiasCurrentTestSystem
BiasCurrentTestSystem
Key Features
  • High efficiency, forward / reverse current switching capability and sweep function
  • High stability, frequency response from 20Hz to 1MHz
  • High accuracy, 3% output current accuracy
  • Expansion capabilities, up to 300Adc
  • Vertical design, easy to maintain
  • Flexible modular test system
  • Multi-channel intakes in the front panel of rack and multi-fans exhausts in the back of rack
  • Multi-function four terminal test fixture
  • Low ESR (< 10m ohm) design for connecters between bias current sources
  • Windows® based software

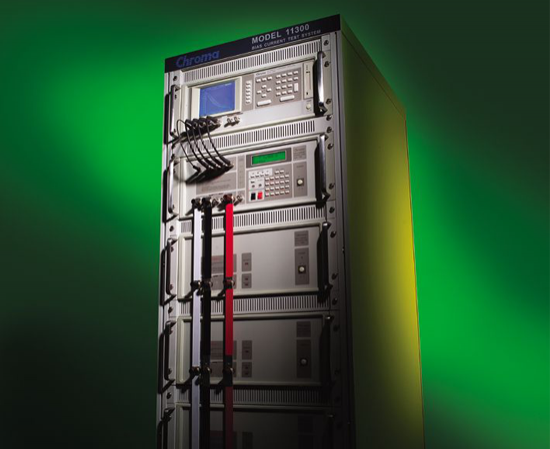

Chroma 11300 bias current test system is an integration test system of LCR Meter and Bias Current Source.

It consists of Chroma 3252/3302 series Automatic Component Analyzer and Chroma 1320 series Bias Current Source. The Chroma 1320 series bias current source output can be controlled by Chroma 3252/3302 LCR meter directly. The bias current output capacity can be selected up to 300A to satisfy various testing in R&D, QC, QA, and production applications.

This system is designed for large DC current testing, up to 300A. The connector between bias current sources is low ESR (This system provides power choke characteristic sweep graph analysis through Windows® base software or sweep function of the meter. The bias current scan triggered automatically or manually can analyze the iron core characteristics in inductor for quality inspection and product feature analysis. The Chroma 11300 is a just right test solution for magnetic choke and core used in various power supply.


▲ L-I Curve Software


Product Inquiry

Select the models you wish to get a quote and click the button "Add to Inquiry Cart" below the table.
You may select multiple items at once. Click the inquiry cart icon on the right hand side of webpage to complete your inquiry.

All specifications are subject to change without notice.
Selection
Model
Description

Bias Current Test System

Four terminal test fixture for DIP 100A

Four terminal test fixture for SMD 60A (combined with A113008)

Four terminal PCB for SMD 100A (combined with A113008)

Vacuum Generator for A113009

Vacuum Pump for A113009

Refer to 3252, 3302

Refer to 1320, 1320S

19" Rack 20U/35U/41U  for Model 11300

LCR Analysis Software
