FPD Tester Model 2918

  • CE Mark
Key Features
  • Support 8K SHV (Super Hi-Vision 7680x4320 / 8192x4320)
  • Support full 8K scrolling function
  • Independent signal and power module design
  • Dual-core graphics processing architecture
    • Increase graphics and data transmission performance
    • 8K Super Hi-Vision images switch in less than 200ms
  • Support 6/8/10/12 bits color depth (12 bit only in LUT mode)
  • Support user edited test patterns
    • BMP pattern format
    • Max. 300 of 8Kx4K bmp patterns
  • Support VDIM and PWM dimming function
  • Support cross coordinates defect positioning function
  • Support auto flicker adjustment (with A712306)
  • Support gigabit Ethernet control interface
  • Support USB port for data update
  • Support MSO / PSR / DSC / VRR function

  Support 8K Super Hi-Vision

The 2918 FPD tester provides 8K Super Hi-Vision (7680x4320/ 8192x4320) for testing. Full 8K@60/120 Hz resolution (32/64 lane V-By-One) is supported by one tester.

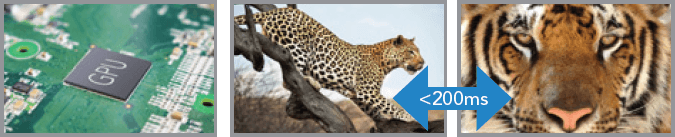

Dual-Core Graphics Processing

  • Significantly increase graphics and data transmission performance
  • 8K SHV pattern switching time< 200ms



True 8K Motion Pattern

  • True 8K scrolling function for 8K motion picture inspection
  • Adjustable scrolling direction (up/down/left/ right), motion speed to test dynamic response of panel



Independent Signal / Power Module

  • Maximum 4 slots of signal module
  • Support LVDS / V-By-One signals
  • Independent power module design providing current measurement, turn on/turn off, and scan timing tests
  • Voltage/current upper and lower limits for OCP/OVP/UCP



Remote Control Box

  • 20 words x 4 lines matrix LCD display
  • Signal and power quick on/off bottom
  • Quick menu switching and selection rotary knob
  • Real-time voltage/current display
  • VCOM adjustment/write-in function



Graphic User Interface - FPD Master

  • Graphical user interface for test program editing
  • Unique GO/NO GO software (option) for quick inspection
  • Support VCOM/Grayscale/EDID inspection



Full Range of Test Patterns and Functions Support

  • Support patterns (color bar, grayscale, dot), 8K bitmap (BMP) figures, and various inspection functions required for industrial panel testing
  • Cross coordinate cursor positioning function to display coordinate and RGB values of any dot in real-time
  • Foreground/background grayscale adjustment for CABC test

▲ 8K Resolution Test Pattern

▲ 8K BMP Files




Product Inquiry

Select the models you wish to get a quote and click the button "Add to Inquiry Cart" below the table.
You may select multiple items at once. Click the inquiry cart icon on the right hand side of webpage to complete your inquiry.

All specifications are subject to change without notice.
Selection
Model
Description

FPD Tester

LVDS Signal Module

16 Lane V-By-One Signal Module

8.1G eDP Signal Module

Ultra-High Definition / Wide Color Gamut Standard Test Images
