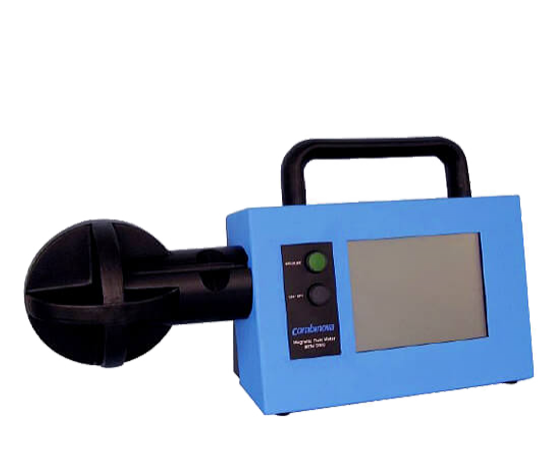

磁場&電場測試儀器 Model MFM 3000

磁場&電場測試儀器
產品特色
  • 可載入ICNIRP、EN 50366、IEC 62233等規範(選購),並適用於其他由ICNIRP衍生的低頻磁場輻射測試規範(5Hz~400kHz)
  • 頻率磁場強度範圍 (5Hz~400kHz): 10nT~10mT
  • 即時頻譜分析
    • 可在兩個頻帶下提供全頻寬頻譜
    • 三軸正交的天線可同步取樣
    • 頻譜zoom in/out功能,提供更詳盡的分析頻譜峰值之頻率解析度
  • 波行捕捉功能
    • 提供個別的X、Y、Z方向的測量
    • 兩種波型呈現方式:低通濾波或2kHz的高通濾波波型zoom in/out功能,提供更詳細分析。
  • 資料數據的紀錄
    • 可自由選擇資料呈現的編排模式,如RMS值、頻譜與波型
    • 可直接儲存測試資料資料
    • 長時間的自動記錄,如檢測實驗室環境背景
  • 大型觸碰式控制板顯示(320x240點矩陣)
  • 標準USB介面
  • 可由軟體遠端遙控,自行設計報搞格式(選購)

Magnetic Field Meter 3000 is a magnetic field instrument with a unique combination of features like:

  • Real time wideband spectrum anal y sis in three dimensions.
  • Peak-detection in time do main measurement
  • Orthogonal coils sensor for field direction independence
  • Frequency range 5Hz - 400kHz
  • Dynamic range from 10nT to 10mt (high field version 100nT to 100mT) with true RMS measurements of both the wideband or any frequency specific magnetic field
  • Logging with RMS-values and spectrum
  • Touch panel dis play with numerical, and graphical result presentation
  • Separate probe version

Magnetic Field Meter 3000 is designed to handle a variety of applications:

  • ICNIRP measurements of both occupational (2010) and public (1998) exposure with built in evaluation against reference levels.
  • General purpose magnetic field measurements with possibilities to select frequency response, and result presentation
  • Single or continuous measurement
  • Manual and automatic logging, up to 7932 readings including FFT
  • Remote mode capabilities controlled from a PC
  • PC support software to handle remote mode operation, storage, presentation, analysis, and report generation

Evaluation against:

  • ICNIRP occupational 1998 and 2010
  • ICNIRP public 1998 and 2010
  • En 50500 occ and pub
  • En 62233 ICNIRP
  • IEC 62233 IEEE
  • EU Directive 201335, AL Low, AL High and AL Limbs

產品詢價

所有規格如有更改,恕不另行通知。
選擇
型號
敘述

Magnetic Field Meter
